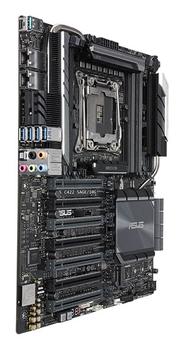

WS C422 SAGE/10G Intel® LGA2066 CEB motherboard with 4-way SLI graphic power, dual Intel® 10G LAN, dual M.2 & U.2, USB 3.1 Gen2 connectors and ASUS Control Center Features: Powerful performance with Intel® Xeon® W processor and ECC memory High Speed networking with dual Intel® 10G LAN Ultimate graphics power with up to 4-way NVIDIA® SLI™ and AMD® CrossFireX™ ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses Next-gen transfer speeds - Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen2 Type-A and Type-C connections Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance Specifications: CPU Intel® Socket 2066 Processors Supports Intel® Virtual RAID on CPU (VROC)Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 Chipset Intel® C422Memory8 x DIMM, Max. 512GB, DDR4 2666/2400/2133 MHz RDIMM, LR-DIMM Memory Quad Channel Memory Architecture Multi-GPU SupportSupports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology Expansion SlotsIntel® C422 Chipset7 x PCIe 3.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, ) StorageIntel® C422 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)8 x SATA 6Gb/s port(s)2 x U.2 connectorSupport Raid 0, 1, 5, 10Intel® Rapid Storage Technology Enterprise supportsIntel® Virtual RAID (VROC) support for CPU RAID LANIntel® X550-AT2 2 x 10 Gigabit LANAudio Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC - Power pre-regulator reduces power input noise to ensure consistent performance- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)- Supports up to 32-Bit/192kHz playback Audio Feature :- DTS Connect- DTS Headphone:X - Optical S/PDIF out port(s) at back panel- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Unique de-pop circuit: Reduces start-up popping noise to audio outputsSeparate layer for left and right track, ensuring both sound deliver equal qualityUSB PortsIntel® C422 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)Workstation FeatureASUS Control Center (ACC)Special FeaturesFan Xpert4- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS 5X Protection III :- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protectionAURA :- Aura RGB Strip Headers- Aura Addressable Strip Header(s)ASUS Exclusive Features :- MemOK!- Ai Charger+- Onboard Button : Power/Reset- File TransferDIGI + Power Control :- CPU Power: Digital 8-phase power designDIGI + Power Control :- DRAM Power: Digital 2-phase power designASUS EZ DIY :- ASUS USB BIOS Flashback - ASUS UEFI BIOS EZ ModeASUS Q-Design :- ASUS Q-Shield- ASUS Q-Code- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM - ASUS Q-ConnectorTurbo AppM.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)Asus Control Center (ACC) IT management software supportedIntel® Virtual RAID on CPU (VROC) readyASMedia USB 3.1 Gen 2 Controller supports Multiple-Ins functionThunderbolt 3 supportOperating System SupportWindows® 10 64-bitBack I/O Ports2 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 (black)Type-C1 x Optical S/PDIF out1 x 8-channel Audio I/O4 x USB 3.1 Gen 1 (blue) Internal I/O Ports1 x Aura Addressable Strip Header(s)2 x U.2 port1 x AAFP connector1 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)1 x VROC_HW_Key1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 6-pin ATX Power connector2 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x 5-pin EXT_FAN(Extension Fan) connector1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x USB BIOS Flashback button(s)1 x Water Pump header (4-pin)1 x System panel connector1 x Thermal sensor connector1 x USB 3.1 Gen 2 front panel connector1 x CPU_OV jumper1 x MemOK! Button1 x M.2 Fan HeaderAccessoriesUser's manualAddressable LED extension cable1 x Vertical M.2 bracket setI/O Shield1 x COM port cable(s)8 x SATA 6Gb/s cable(s)1 x M.2 screws1 x Supporting DVD1 x 3-Way SLI bridge(s)1 x 4-Way SLI bridge(s)1 x SLI HB BRIDGE(2-WAY-M)1 x Q-ConnectorForm FactorCEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) WeightColor Box(3-in-1)Net Weight: 4.28kgGross Weight: 6.48kgBulk Pack(5-in-1)Net Weight: 6.83kgGross Weight: 9.91kgEnvironmentOperation temperature: 10℃ ~ 35℃Non operation temperature: -40℃ ~ 70℃Non operation humidity: 20% ~ 90% ( Non condensing)
